AD7878: CMOS, Complete 12-Bit, 100kHz Sampling ADC with DSP Interface
The AD7878 is a fast, complete, 12-bit A/D converter with a versatile DSP interface consisting of an 8-word, first-in, first-out (FIFO) memory and associated control logic.
The FIFO memory allows up to eight samples to be digitized before the microprocessor is required to service the A/D converter. The eight words can then be read out of the FIFO at maximum microprocessor speed. A fast data access time of 41 ns allows direct interfacing to DSP processors and high speed 16-bit microprocessors.
An on-chip status/control register allows the user to program the effective length of the FIFO and contains the FIFO out of range, FIFO empty and FIFO word count information.
The analog input of the AD7878 has a bipolar range of ±3 V. The AD7878 can convert full power signals up to 50 kHz and is fully specified for dynamic parameters such as signal-to-noise ratio and harmonic distortion.
The AD7878 is fabricated in Linear Compatible CMOS (LC2 MOS), an advanced, mixed technology process that combines precision bipolar circuits with low power CMOS logic. The part is available in four package styles, 28-pin plastic and hermetic dual-in-line package (DIP), leadless ceramic chip carrier (LCCC) or plastic leaded chip carrier (PLCC).
AD7878 特点
- Complete ADC with DSP Interface, Comprising:
- Track/Hold Amplifier with 2 us Acquisition Time
- 7 us A/D Converter
- 3 V Zener Reference
- 8-Word FIFO and Interface Logic - Interfaces to High Speed DSP Processors, e.g., ADSP-2100, TMS32010, TMS32020
- 72 dB SNR at 10 kHz Input Frequency
- 41 ns max Data Access Time
- Low Power, 60 mW typ

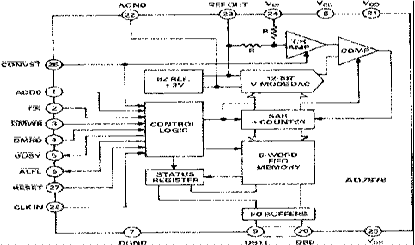

AD7878 功能框图
| 产品型号 | 产品状态 | 封装 | 引脚 | 温度范围 |
|---|---|---|---|---|
| AD7878AQ | 量产 | CERDIP GLASS SEAL | 28 | 工业 |
| AD7878BQ | 量产 | CERDIP GLASS SEAL | 28 | 工业 |
| AD7878JNZ | 量产 | 28 ld PDIP | 28 | 商业 |
| AD7878JPZ | 量产 | 28 ld PLCC | 28 | 商业 |
| AD7878JPZ-REEL | 量产 | 28 ld PLCC | 28 | 商业 |
| AD7878KPZ | 量产 | 28 ld PLCC | 28 | 商业 |
| AD7878KPZ-REEL | 量产 | 28 ld PLCC | 28 | 商业 |
| AD7878LN | 量产 | 28 ld PDIP | 28 | 商业 |
| AD7878LPZ | 量产 | PLCC:PLASTIC LEAD CHIP CAR | 28 | 商业 |
| AD7878LPZ-REEL | 量产 | PLCC:PLASTIC LEAD CHIP CAR | 28 | 商业 |
| AD7878SE | 量产 | LCC:CER LEADLESS CHIP CARR | 28 | 军用 |
| AD7878SE/883B | 量产 | LCC:CER LEADLESS CHIP CARR | 28 | 军用 |
| AD7878SQ | 量产 | CERDIP GLASS SEAL | 28 | 军用 |
