AD780: 2.5 V/3.0 V Ultrahigh Precision Bandgap Voltage Reference

The AD780 is an ultrahigh precision bandgap reference voltage which provides a 2.5 V or 3.0 V output from inputs between 4.0 V and 36 V. Low initial error and temperature drift combined with low output noise and the ability to drive any value of capacitance make the AD780 the ideal choice for enhancing the performance of high resolution ADCs and DACs and for any general purpose precision reference application. A unique low headroom design facilitates a 3.0 V output from a 5.0 V ± 10% input, providing a 20% boost to the dynamic range of an ADC, over performance with existing 2.5 V references.

The AD780 can be used to source or sink up to 10 mA and can be used in series or shunt mode, thus allowing positive or negative output voltages without external components. This makes it suitable for virtually any high performance reference application. Unlike some competing references, the AD780 has no "region of possible instability." The part is stable under all load conditions when a 1 uF bypass capacitor is used on the supply.

A temperature output pin is provided on the AD780. This provides an output voltage that varies linearly with temperature, allowing the AD780 to be configured as a temperature transducer while providing a stable 2.5 V or 3.0 V output.

The AD780 is a pin-compatible performance upgrade for the LT1019(A)-2.5 and the AD680. The latter is targeted toward low power applications.

The AD780 is available in two grades in plastic DIP, SOIC and cerdip packages. The AD780AN, AD780AR, AD780BN and AD780BR are specified for operation from -40°C to +85°C. The AD780SQ and AD780SQ/883B are specified for -55°C to +125°C operation.

AD780 特点

Pin Programmable 2.5 V or 3.0 V Output
Ultralow Drift: 3 ppm/°C max
High Accuracy: 2.5 V or 3.0 V, ±1 mV max
Low Noise: 100 nV/√Hz
Noise Reduction Capability
Low Quiescent Current: 1 mA max
Output Trim Capability
Plug-in Upgrade for Present References
Temperatue Output PIN
Series or Shunt Mode Operation 2.5 V, ±3.0 V)

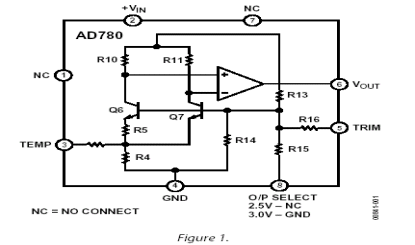

AD780 功能框图

AD780 芯片订购指南

产品型号	产品状态	封装	引脚	温度范围
AD780AN	量产	8 ld PDIP	8	工业
AD780ANZ	量产	8 ld PDIP	8	工业
AD780AR	量产	8 ld SOIC	8	工业
AD780AR-REEL7	量产	8 ld SOIC	8	工业
AD780ARZ	量产	8 ld SOIC	8	工业
AD780ARZ-REEL7	量产	8 ld SOIC	8	工业
AD780BN	量产	8 ld PDIP	8	工业
AD780BNZ	量产	8 ld PDIP	8	工业
AD780BR	量产	8 ld SOIC	8	工业
AD780BR-REEL	量产	8 ld SOIC	8	工业
AD780BR-REEL7	量产	8 ld SOIC	8	工业
AD780BRZ	量产	8 ld SOIC	8	工业
AD780BRZ-REEL	量产	8 ld SOIC	8	工业
AD780BRZ-REEL7	量产	8 ld SOIC	8	工业
AD780CRZ	量产	8 ld SOIC	8	工业
AD780CRZ-REEL7	量产	8 ld SOIC	8	工业
