AD774B: Complete 12-Bit Successive Approximation Analog-to-Digital Converters With Three-State Output and 8 us Conversion
The AD674B and AD774B are complete 12-bit successive approximation analog-to-digital converters with three-state output buffer circuitry for direct interface to 8- and 16-bit microprocessor busses. A high precision voltage reference and clock are included on chip, and the circuit requires only power supplies and control signals for operation.
The AD674B and AD774B are pin compatible with the industry standard AD574A, but offer faster conversion time and access speed than the AD574A and lower power consumption. The AD674B converts in 15 us (maximum) and the AD774B converts in 8 us (maximum).
The monolithic design is implemented using Analog Devices' BiMOS II process allowing high performance bipolar analog circuitry to be combined on the same die with digital CMOS logic. Offset linearity and scaling errors are minimized by active trimming of thin-film resistors.
Five different grades are available. The J and K grades are specified for operation over the 0°C to +70°C temperature range. A and B grades are specified from -40°C to +85°C, the T is specified from -55°C to +125°C. The J and K grades are available in a 28-pin plastic DIP or 28-lead SOIC. All other grades are available in a 28-pin hermetically sealed ceramic DIP.
AD774B 特点
- Complete Monolithic 12-Bit A/D Converters with Reference, Clock, and Three-State Output Buffers
- Industry Standard Pinout
- High Speed Upgrades for AD574A
- 8- and 16-Bit Microprocessor Interface
- 8 us (Max) Conversion Time (AD774B)
- 15 us (Max) Conversion Time (AD674B)
- ±5 V, ±10 V, 0 V–10 V, 0 V–20 V Input Ranges
- Commercial, Industrial, and Military Temperature Range Grades
- MIL-STD-883-Compliant Versions Available

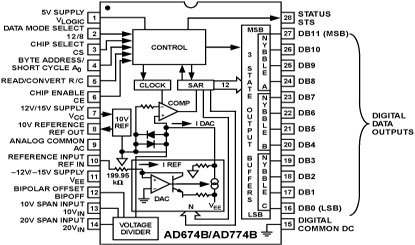

AD774B 功能框图
| 产品型号 | 产品状态 | 封装 | 引脚 | 温度范围 |
|---|---|---|---|---|
| AD774BAR | 量产 | 28 ld SOIC - Wide | 28 | 工业 |
| AD774BARZ | 量产 | 28 ld SOIC - Wide | 28 | 工业 |
| AD774BBD | 量产 | S/B OR B/B CERAMIC DIP | 28 | 工业 |
| AD774BBRZ | 量产 | 28 ld SOIC - Wide | 28 | 工业 |
| AD774BJN | 量产 | 28 ld PDIP | 28 | 商业 |
| AD774BJNZ | 量产 | 28 ld PDIP | 28 | 商业 |
| AD774BKN | 量产 | 28 ld PDIP | 28 | 工业 |
| AD774BKNZ | 量产 | 28 ld PDIP | 28 | 工业 |
| AD774BTD | 量产 | S/B OR B/B CERAMIC DIP | 28 | 军用 |
| AD774BTD/883B | 量产 | S/B OR B/B CERAMIC DIP | 28 | 军用 |
