AD7574: 8-Bit Analog-to-Digital Converter
The AD7574 is an 8-bit microprocessor compatible A/D converter with a parallel interface, 15 us conversion time, ratiometric capability and runs from a single 5 V supply.
AD7574 特点
- 8-Bit Resolution
- No Missed Codes over Full Temperature Range
- Fast Conversion Time: 15 us
- Interfaces to uP like RAM, ROM of Slow - Memory
- Low Power Dissipation: 30 mW
- Ratiometric Capability
- Single +5V Supply
- Low Cost
- Internal Comparator and Clock Oscillator

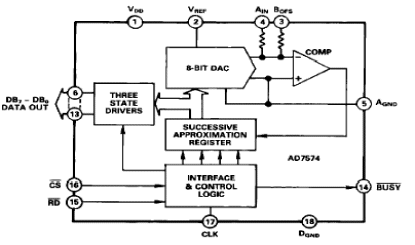

AD7574 功能框图
| 产品型号 | 产品状态 | 封装 | 引脚 | 温度范围 |
|---|---|---|---|---|
| AD7574ACHIPS | 量产 | CHIPS OR DIE | - | 工业 |
| AD7574AQ | 量产 | CERDIP GLASS SEAL | 18 | 工业 |
| AD7574BQ | 量产 | CERDIP GLASS SEAL | 18 | 工业 |
| AD7574JN | 量产 | 18 ld PDIP | 18 | 商业 |
| AD7574JNZ | 量产 | 18 ld PDIP | 18 | 商业 |
| AD7574KNZ | 量产 | 18 ld PDIP | 18 | 商业 |
| AD7574SCHIPS | 量产 | CHIPS OR DIE | - | 商业 |
| AD7574SE/883B | 量产 | LCC:CER LEADLESS CHIP CARR | 20 | 军用 |
| AD7574SQ | 量产 | CERDIP GLASS SEAL | 18 | 军用 |
| AD7574TQ | 量产 | CERDIP GLASS SEAL | 18 | 军用 |
| AD7574TQ/883B | 量产 | CERDIP GLASS SEAL | 18 | 军用 |
