AD7572: LC2MOS Complete, High Speed 12-Bit ADC
The AD7572 is a complete, 12-bit ADC that offers high speed performance combined with low, CMOS power levels. The AD7572 uses an accurate, high speed DAC and comparator in a successive-approximation loop to achieve a fast conversion time.
An on-chip, buried Zener diode provides a stable reference voltage to give low drift performance over the full temperature range and the specified accuracy is achieved without any user trims. An on-chip clock circuit is provided, which may be used with a crystal for stand-alone operation, or the clock input may be driven from a external clock source such as a divided-down microprocessor clock. The only other external components required for basic operation of the AD7572 are decoupling capacitors for the supply voltages and reference output.
AD7572 特点
- 12-Bit Resolution and Accuracy
- Fast Conversion Time
- AD7572XX06: 5 us
- AD7572XX12: 12.5 us - Complete with On-Chip Reference
- Fast Bus Access Time: 90 ns
- Low Power: 135 mW
- Small, 0.3", 24-Pin Package and
28-Terminal Surface Mount Packages

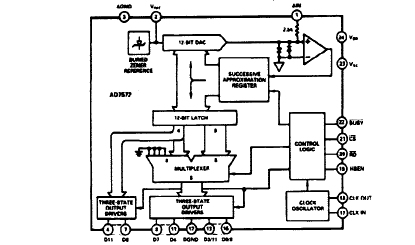

AD7572 功能框图
| 产品型号 | 产品状态 | 封装 | 引脚 | 温度范围 |
|---|---|---|---|---|
| 5962-8759101LX | 量产 | CERDIP GLASS SEAL | 24 | 军用 |
| 5962-87591043X | 量产 | LCC:CER LEADLESS CHIP CARR | 28 | 军用 |
| 5962-8759104LX | 量产 | CERDIP GLASS SEAL | 24 | 军用 |
| 5962-87591053X | 量产 | LCC:CER LEADLESS CHIP CARR | 28 | 军用 |
| 5962-8759105LX | 量产 | CERDIP GLASS SEAL | 24 | 军用 |
| AD7572AQ05 | 量产 | CERDIP GLASS SEAL | 24 | 工业 |
| AD7572BQ05 | 量产 | CERDIP GLASS SEAL | 24 | 工业 |
| AD7572BQ12 | 量产 | CERDIP GLASS SEAL | 24 | 工业 |
| AD7572CQ05 | 量产 | CERDIP GLASS SEAL | 24 | 工业 |
| AD7572CQ12 | 量产 | CERDIP GLASS SEAL | 24 | 工业 |
| AD7572JN05 | 量产 | 24 ld PDIP | 24 | 商业 |
| AD7572JN12 | 量产 | 24 ld PDIP | 24 | 商业 |
| AD7572JNZ05 | 量产 | 24 ld PDIP | 24 | 商业 |
| AD7572JNZ12 | 量产 | 24 ld PDIP | 24 | 商业 |
| AD7572KN12 | 量产 | 24 ld PDIP | 24 | 商业 |
| AD7572KNZ12 | 量产 | 24 ld PDIP | 24 | 商业 |
| AD7572LN05 | 量产 | 24 ld PDIP | 24 | 商业 |
| AD7572LNZ05 | 量产 | 24 ld PDIP | 24 | 商业 |
| AD7572LNZ12 | 量产 | 24 ld PDIP | 24 | 商业 |
| AD7572LP05 | 量产 | 28 ld PLCC | 28 | 商业 |
| AD7572LPZ05 | 量产 | PLCC:PLASTIC LEAD CHIP CAR | 28 | 商业 |
| AD7572SE05 | 量产 | LCC:CER LEADLESS CHIP CARR | 28 | 军用 |
