AD7542: Precision 12-Bit CMOS Multiplying IOUT DAC, 4-Bit Bus

The AD7542 is a precision 12-bit CMOS multiplying DAC designed for direct interface to 4- or 8-bit microprocessors.

The functional diagram shows the AD7542 to consist of three 4-bit data registers, a 12-bit DAC register, address decoding logic and a 12-bit CMOS multiplying DAC. Data is loaded into the data registers in three 4-bit bytes, and subsequently transferred to the 12-bit DAC register. All data loading or data transfer operations are identical to the WRITE cycle of a static RAM. A clear input allows the DAC register to be easily reset to all zeros when powering up the device.

AD7542 特点

• Resolution: 12 Bits
• Nonlinearity: ±1/2 LSB Tmin to Tmax
• Low Gain Drift: 2ppm/°C typ, 5ppm/°C max
• Microprocessor Compatible
• Full 4-Quadrant Multiplication
• Fast Interface Timing
• Low Power Dissipation: 40 mW max
• Low Cost
• Small Size: 16-pin DIP and 20-Terminal Surface Mount Package
• Latch Free (Protection Schottky Not Required)

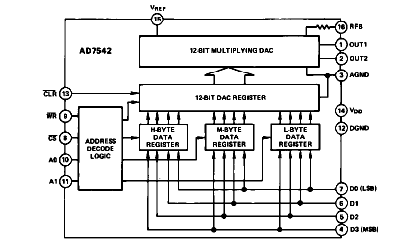

AD7542 功能框图

AD7542 芯片订购指南

产品型号	产品状态	封装	引脚	温度范围
AD7542ACHIPS	量产	CHIPS OR DIE	-	工业
AD7542AQ	量产	CERDIP GLASS SEAL	16	工业
AD7542BQ	量产	CERDIP GLASS SEAL	16	工业
AD7542GBQ	量产	CERDIP GLASS SEAL	16	工业
AD7542GKN	量产	16 ld PDIP	16	商业
AD7542GKNZ	量产	16 ld PDIP	16	商业
AD7542GTQ/883B	量产	CERDIP GLASS SEAL	16	军用
AD7542JN	量产	16 ld PDIP	16	商业
AD7542JNZ	量产	16 ld PDIP	16	商业
AD7542JP	量产	20 ld PLCC	20	商业
AD7542JPZ	量产	20 ld PLCC	20	商业
AD7542JPZ-REEL	量产	20 ld PLCC	20	商业
AD7542KN	量产	16 ld PDIP	16	商业
AD7542KNZ	量产	16 ld PDIP	16	商业
AD7542KP	量产	20 ld PLCC	20	商业
AD7542KP-REEL	量产	20 ld PLCC	20	商业
AD7542KPZ	量产	20 ld PLCC	20	商业
AD7542KPZ-REEL	量产	20 ld PLCC	20	商业
AD7542KR	量产	16 ld SOIC - Wide	16	商业
AD7542KRZ	量产	16 ld SOIC - Wide	16	商业
AD7542SCHIPS	量产	CHIPS OR DIE	-	军用
AD7542TQ/883B	量产	CERDIP GLASS SEAL	16	军用
