AD7541A: 12-Bit CMOS Multiplying DAC
The Analog Devices AD7541A is a low cost, high performance 12-bit monolithic multiplying digital-to-analog converter. It is fabricated using advanced, low noise, thin film on CMOS technology and is available in a standard 18-lead DIP and in 20-terminal surface mount packages.
The AD7541A is functionally and pin compatible with the industry standard AD7541 device and offers improved specifications and performance. The improved design ensures that the device is latch-up free so no output protection Schottky diodes are required.
This new device uses laser wafer trimming to provide full 12-bit endpoint linearity with several new high performance grades.
AD7541A 特点
- Improved Version of AD 7541
- Full Four Quadrant Multiplication
- 12-Bit Linearity (Endpoint)
- All Parts Guaranteed Monotonic
- TTL/CMOS Compatible
- Low Cost
- Protection Shottky Diodes Not Required
- Low Logic Input Leakage

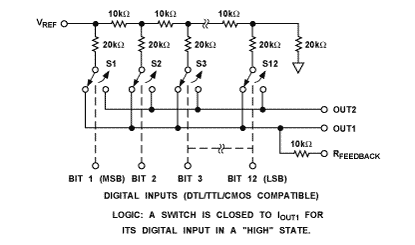

AD7541A 功能框图
| 产品型号 | 产品状态 | 封装 | 引脚 | 温度范围 |
|---|---|---|---|---|
| 5962-89481022X | 量产 | LCC:CER LEADLESS CHIP CARR | 20 | 军用 |
| 5962-8948102VX | 量产 | CERDIP GLASS SEAL | 18 | 军用 |
| AD7541AACHIPS | 量产 | CHIPS OR DIE | - | 工业 |
| AD7541AAQ | 量产 | CERDIP GLASS SEAL | 18 | 工业 |
| AD7541ABQ | 量产 | CERDIP GLASS SEAL | 18 | 工业 |
| AD7541AJN | 量产 | 18 ld PDIP | 18 | 商业 |
| AD7541AJNZ | 量产 | 18 ld PDIP | 18 | 商业 |
| AD7541AJP | 量产 | 20 ld PLCC | 20 | 商业 |
| AD7541AJP-REEL | 量产 | 20 ld PLCC | 20 | 商业 |
| AD7541AJPZ | 量产 | 20 ld PLCC | 20 | 商业 |
| AD7541AJPZ-REEL | 量产 | 20 ld PLCC | 20 | 商业 |
| AD7541AKN | 量产 | 18 ld PDIP | 18 | 商业 |
| AD7541AKNZ | 量产 | 18 ld PDIP | 18 | 商业 |
| AD7541AKP | 量产 | 20 ld PLCC | 20 | 商业 |
| AD7541AKP-REEL | 量产 | 20 ld PLCC | 20 | 商业 |
| AD7541AKPZ | 量产 | 20 ld PLCC | 20 | 商业 |
| AD7541AKPZ-REEL | 量产 | 20 ld PLCC | 20 | 商业 |
| AD7541AKR | 量产 | 18 ld SOIC - Wide | 18 | 商业 |
| AD7541AKR-REEL | 量产 | 18 ld SOIC - Wide | 18 | 商业 |
| AD7541AKR-REEL7 | 量产 | 18 ld SOIC - Wide | 18 | 商业 |
| AD7541AKRZ | 量产 | 18 ld SOIC - Wide | 18 | 商业 |
| AD7541AKRZ-REEL | 量产 | 18 ld SOIC - Wide | 18 | 商业 |
| AD7541AKRZ-REEL7 | 量产 | 18 ld SOIC - Wide | 18 | 商业 |
| AD7541ASQ | 量产 | CERDIP GLASS SEAL | 18 | 军用 |
| AD7541ATE | 量产 | LCC:CER LEADLESS CHIP CARR | 20 | 军用 |
| AD7541ATQ | 量产 | CERDIP GLASS SEAL | 18 | 军用 |
