AD7226: CMOS, Quad 8-Bit Voltage Output DAC
The AD7226 contains four 8-bit voltage-output digital-to-analog converters, with output buffer amplifiers and interface logic on a single monolithic chip. No external trims are required to achieve full specified performance for the part.
Separate on-chip latches are provided for each of the four D/A converters. Data is transferred into one of these data latches through a common 8-bit TTL/CMOS (5V) compatible input port. Control inputs A0 and A1 determine which DAC is loaded when WR goes low. The control logic is speed-compatible with most 8-bit microprocessors.
Each D/A converter includes an output buffer amplifier capable of driving up to 5 mA of output current. The amplifiers' offsets are laser-trimmed during manufacture, thereby eliminating any requirement for offset nulling.
Specified performance is guaranteed for input reference voltages from +2V to +12.5V with dual supplies. The part is also specified for single supply operation at a reference of +10V.
The AD7226 is fabricated in an all ion-implanted high speed Linear Compatible CMOS (LC2MOS) process which has been specifically developed to allow high speed digital logic circuits and precision analog circuits to be integrated on the same chip.
AD7226 特点
- Four 8-Bit DACs with Output Amplifiers
- Skinny 20-Lead DIP, SOIC, SSOP, and PLCC Packages
- Microprocessor-Compatible
- TTL/CMOS-Compatible
- No User Trims
- Extended Temperature Range Operation
- Single Supply Operation Possible

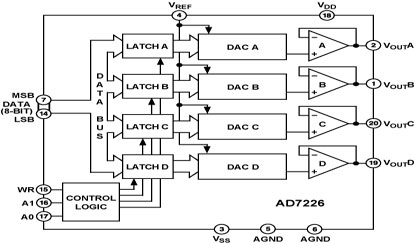

AD7226 功能框图
| 产品型号 | 产品状态 | 封装 | 引脚 | 温度范围 |
|---|---|---|---|---|
| 5962-87802012A | 量产 | LCC:CER LEADLESS CHIP CARR | 20 | 军用 |
| 5962-8780201RA | 量产 | CERDIP GLASS SEAL | 20 | 军用 |
| AD7226BCHIPS | 量产 | CHIPS OR DIE | - | 工业 |
| AD7226BQ | 量产 | 20 ld CerDIP | 20 | 工业 |
| AD7226BRS | 量产 | 20 ld SSOP | 20 | 工业 |
| AD7226BRS-REEL | 量产 | 20 ld SSOP | 20 | 工业 |
| AD7226BRSZ | 量产 | 20 ld SSOP | 20 | 工业 |
| AD7226KN | 量产 | 20 ld PDIP | 20 | 商业 |
| AD7226KNZ | 量产 | 20 ld PDIP | 20 | 商业 |
| AD7226KP | 量产 | 20 ld PLCC | 20 | 商业 |
| AD7226KP-REEL | 量产 | 20 ld PLCC | 20 | 商业 |
| AD7226KPZ | 量产 | 20 ld PLCC | 20 | 商业 |
| AD7226KPZ-REEL | 量产 | 20 ld PLCC | 20 | 商业 |
| AD7226KR | 量产 | 20 ld SOIC - Wide | 20 | 商业 |
| AD7226KR-REEL | 量产 | 20 ld SOIC - Wide | 20 | 商业 |
| AD7226KRZ | 量产 | 20 ld SOIC - Wide | 20 | 商业 |
| AD7226KRZ-REEL | 量产 | 20 ld SOIC - Wide | 20 | 商业 |
| AD7226TQ | 量产 | 20 ld CerDIP | 20 | 军用 |
