AD713: Quad Precision, Low Cost, High Speed, BiFET Op Amp
The AD713 is a quad operational amplifier, consisting of four AD711 BiFET op amps. These precision monolithic op amps offer excellent dc characteristics plus rapid settling times, high slew rates, and ample bandwidths. In addition, the AD713 provides the close matching ac and dc characteristics inherent to amplifiers sharing the same monolithic die.
The single-pole response of the AD713 provides fast settling: l us to 0.01%. This feature, combined with its high dc precision, makes it suitable for use as a buffer amplifier for 12- or 14-bit DACs and ADCs. It is also an excellent choice for use in active filters in 12-, 14- and 16-bit data acquisition systems. Furthermore, the AD713's low total harmonic distortion (THD) level of 0.0003% and very close matching ac characteristics make it an ideal amplifier for many demanding audio applications.
The AD713 is internally compensated for stable operation at unity gain and is available in seven performance grades. The AD713J and AD713K are rated over the commercial temperature range of 0°C to +70°C. The AD713A and AD713B are rated over the industrial temperature of -40°C to +85°C. The AD713S and AD713T are rated over the military temperature range of -55°C to +125°C and are available processed to MIL-STD-883B, Rev. C.
The AD713 is offered in a 16-pin SOIC, 14-pin plastic DIP and hermetic cerdip package, or in chip form.
AD713 特点
- DC PERFORMANCE 0.5 mV max Offset Voltage (AD713K) 20 mV/°C max Drift (AD713K) 200 V/mV min Open Loop Gain (AD713K) 2 mV p-p typ Noise, 0.1 Hz to 10 Hz True 14-Bit Accuracy Single Version: AD711 Dual Version: AD712
- Available in 16-Pin SOIC, 14-Pin Plastic DIP and Hermetic Cerdip Packages Standard Military Drawing Available
- AC PERFORMANCE 1 ms Settling to 0.01% for 10 V Step 20 V/ms Slew Rate 0.0003% Total Harmonic Distortion (THD) 4 MHz Unity Gain Bandwidth

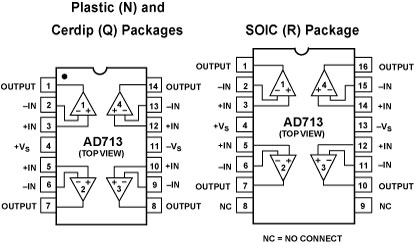

AD713 功能框图
| -3dB Bandwidth | 4MHz | Vcc-Vee Supply (V) | 9 to 36 |
| Slew Rate | 20V/us | Iq per Amplifier | 3mA |
| Vos | 300uV | # OpAmps per Pkg | 4 |
| Ib | 40pA | Operating Temp Range | -55 to +125 |
| Input Noise (nV/rtHz) | 16nV/rtHz | Packages | DIP,SOIC |
| 产品型号 | 产品状态 | 封装 | 引脚 | 温度范围 |
|---|---|---|---|---|
| 5962-9063301MCA | 量产 | 14 ld CerDIP | 14 | 军用 |
| AD713AQ | 量产 | 14 ld CerDIP | 14 | 工业 |
| AD713JN | 量产 | 14 ld PDIP | 14 | 商业 |
| AD713JNZ | 量产 | 14 ld PDIP | 14 | 商业 |
| AD713JR-16 | 量产 | 16 ld SOIC - Wide | 16 | 商业 |
| AD713JR-16-REEL | 量产 | 16 ld SOIC - Wide | 16 | 商业 |
| AD713JR-16-REEL7 | 量产 | 16 ld SOIC - Wide | 16 | 商业 |
| AD713JRZ-16 | 量产 | 16 ld SOIC - Wide | 16 | 商业 |
| AD713JRZ-16-REEL | 量产 | 16 ld SOIC - Wide | 16 | 商业 |
| AD713JRZ-16-REEL7 | 量产 | 16 ld SOIC - Wide | 16 | 商业 |
| AD713KN | 量产 | 14 ld PDIP | 14 | 商业 |
| AD713KNZ | 量产 | 14 ld PDIP | 14 | 商业 |
EVAL-PRAOPAMP: Universal Precision Op Amp Evaluation Board
| 产品型号 | 产品状态 | 封装 | 引脚 | 温度范围 |
|---|---|---|---|---|
| EVAL-PRAOPAMP-1KSZ | 量产 | 评估板 | 商业 | |
| EVAL-PRAOPAMP-1RJZ | 量产 | 评估板 | 商业 | |
| EVAL-PRAOPAMP-1RMZ | 量产 | 评估板 | 商业 | |
| EVAL-PRAOPAMP-1RZ | 量产 | 评估板 | 商业 | |
| EVAL-PRAOPAMP-2RMZ | 量产 | 评估板 | 商业 | |
| EVAL-PRAOPAMP-2RZ | 量产 | 评估板 | 商业 | |
| EVAL-PRAOPAMP-4RUZ | 量产 | 评估板 | 商业 | |
| EVAL-PRAOPAMP-4RZ | 量产 | 评估板 | 商业 |
