AD587: High Precision 10 V Reference

The AD587 represents a major advance in state-of-the-art monolithic voltage references. Using a proprietary ion-implanted buried Zener diode and laser wafer trimming of high stability thin-film resistors, the AD587 provides outstanding performance at low cost.

The AD587 offers much higher performance than most other 10 V references. Because the AD587 uses an industry-standard pinout, many systems can be upgraded instantly with the AD587.

The buried Zener approach to reference design provides lower noise and drift than band gap voltage references. The AD587 offers a noise-reduction pin that can be used to further reduce the noise level generated by the buried Zener.

The AD587 is recommended for use as a reference for 8-bit, 10-bit, 12-bit, 14-bit, or 16-bit DACs that require an external precision reference. The device is also ideal for successive approximation or integrating ADCs with up to 14 bits of accuracy. In general, it offers better performance than standard on-chip references.

The AD587J and AD587K are specified for operation from 0°C to 70°C, and the AD587U is specified for operation from −55°C to +125°C. The AD587JQ and AD587UQ models are available in 8-lead CERDIP. Other models are available in an 8-lead SOIC package for surface-mount applications, or in an 8-lead PDIP.

产品焦点 Product Highlights

Laser trimming of both initial accuracy and temperature coefficients. This laser trimming results in very low errors over temperature without the use of external components. The AD587U guarantees ±14 mV maximum total error between −55°C and +125°C.
Optional fine trim connection. This connection is designed for applications requiring higher precision.
Instant upgrade of any system using an industry-standard pinout 10 V reference.
Very low output noise. AD587 output noise is typically 4 μV p-p. A noise-reduction pin is provided for additional noise filtering using an external capacitor.
MIL-STD-883-compliant versions available. Refer to the Analog Devices Military/Aerospace Reference Manual for detailed specifications.

AD587 特点

Laser trimmed to high accuracy 10.000 V ± 5 mV (U grade)
Trimmed temperature coefficient 5 ppm/°C maximum (U grade)
Noise-reduction capability
Low quiescent current: 4 mA maximum
Output trim capability
MIL-STD-883-compliant versions available

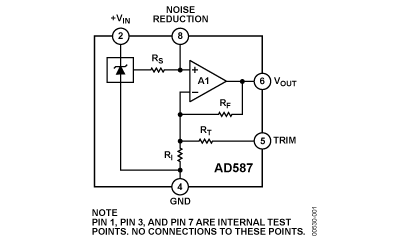

AD587 功能框图

AD587 芯片订购指南

产品型号	产品状态	封装	引脚	温度范围
5962-8982502PA	量产	8 ld CerDIP	8	军用
5962-8982503PA	量产	8 ld CerDIP	8	军用
AD587JN	量产	8 ld PDIP	8	商业
AD587JNZ	量产	8 ld PDIP	8	商业
AD587JQ	量产	8 ld CerDIP	8	商业
AD587JR	量产	8 ld SOIC	8	商业
AD587JR-REEL	量产	8 ld SOIC	8	商业
AD587JRZ	量产	8 ld SOIC	8	商业
AD587JRZ-REEL	量产	8 ld SOIC	8	商业
AD587JRZ-REEL7	量产	8 ld SOIC	8	商业
AD587KN	量产	8 ld PDIP	8	商业
AD587KNZ	量产	8 ld PDIP	8	商业
AD587KR	量产	8 ld SOIC	8	商业
AD587KR-REEL	量产	8 ld SOIC	8	商业
AD587KR-REEL7	量产	8 ld SOIC	8	商业
AD587KRZ	量产	8 ld SOIC	8	商业
AD587KRZ-REEL	量产	8 ld SOIC	8	商业
AD587KRZ-REEL7	量产	8 ld SOIC	8	商业
AD587UQ	量产	8 ld CerDIP	8	军用
