AD584: Pin Programmable Precision Voltage Reference

The AD584 is an eight-terminal precision voltage reference offering pin-programmable selection of four popular output voltages: 10.000 V, 7.500 V, 5.000 V and 2.500 V. Other output voltages, above, below or between the four standard outputs, are available by the addition of external resistors. Input voltage may vary between 4.5 and 30 volts.

Laser Wafer Trimming (LWT) is used to adjust the pin-programmable output levels and temperature coefficients, resulting in the most flexible high precision voltage reference available in monolithic form.

In addition to the programmable output voltages, the AD584 offers a unique strobe terminal which permits the device to be turned on or off. When the AD584 is used as a power supply reference, the supply can be switched off with a single, low-power signal. In the "off" state the current drain by the AD584 is reduced to about 100 uA. In the "on" state the total supply current is typically 750uA including the output buffer amplifier.

The AD584 is recommended for use as a reference for 8-, 10- or 12-bit D/A converters which require an external precision reference. The device is also ideal for all types of A/D converters of up to 14-bit accuracy, either successive approximation or integrating designs, and in general can offer better performance than that provided by standard self-contained references.

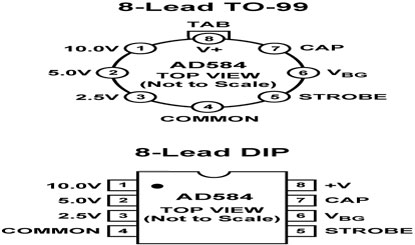

The AD584J, K and L are specified for operation from 0°C to +70°C; the AD584S and T are specified for the -55°C to +125°C range. All grades are packaged in a hermetically sealed eight-terminal TO-99 metal can; the AD584 J and K are also available in an 8-pin plastic DIP

AD584 特点

Four Programmable Output Voltages: 10.000 V, 7.500 V, 5.000 V, 2.500 V
Laser Trimmed to High Accuracies
No External Components Required
Trimmed Temperature Coefficient:
5 ppm/°C Max, 0°C to 70°C (AD584L)
15 ppm/°C Max, -55°C to +125°C (AD584T)
Zero Output Strobe Terminal Provided
Two Terminal Negative Reference Capability (5 V and above)
Output Sources or Sinks Current
Low Quiescent Current: 1.0 mA Max
10 mA Current Output Capability
MIL-STD-883 Compliant Versions Available

AD584 功能框图

AD584 芯片订购指南

产品型号	产品状态	封装	引脚	温度范围
AD584JH	量产	8 ld Header	8	商业
AD584JN	量产	8 ld PDIP	8	商业
AD584JNZ	量产	8 ld PDIP	8	商业
AD584KH	量产	8 ld Header	8	商业
AD584KN	量产	8 ld PDIP	8	商业
AD584KNZ	量产	8 ld PDIP	8	商业
AD584LH	量产	8 ld Header	8	商业
AD584SH	量产	8 ld Header	8	军用
AD584SH/883B	量产	8 ld Header	8	军用
AD584TH	量产	8 ld Header	8	军用
AD584TH/883B	量产	8 ld Header	8	军用
JM38510/12801BGA	量产	8 ld Header	8	军用
