AD580: High Precision 2.5 V IC Reference

The AD580 is a three-terminal, low cost, temperature compensated, bandgap voltage reference which provides a fixed 2.5 V output for inputs between 4.5 V and 30 V. A unique combination of advanced circuit design and laser-wafer trimmed thin-film resistors provide the AD580 with an initial tolerance of ±0.4%, a temperature stability of better than 10 ppm/°C and long-term stability of better than 250uV. In addition, the low quiescent current drain of 1.5 mA max offers a clear advantage over classical Zener techniques.

The AD580 is recommended as a stable reference for all 8-, 10- and 12-bit D-to-A converters that require an external reference. In addition, the wide input range of the AD580 allows operation with 5 volt logic supplies making the AD580 ideal for digital panel meter applications or whenever only a single logic power supply is available.

The AD580J, K, L and M are specified for operation over the 0°C to +70°C temperature range; the AD580S, T and U are specified for operation over the extended temperature range of -55°C to +125°C.

AD580 特点

Laser Trimmed to High Accuracy: 2.500 V ± 0.4%
3-Terminal Device: Voltage In/Voltage Out
Excellent Temperature Stability: 10 ppm/°C (AD580M, U)
Excellent Long-Term Stability: 250 uV (25 uV/Month)
Low Quiescent Current: 1.5 mA max
Small, Hermetic IC Package: TO-52 Can
MIL-STD-883 Compliant Versions Available

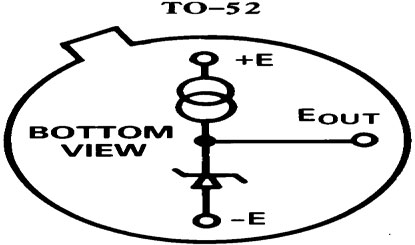

AD580 功能框图

AD580 芯片订购指南

产品型号	产品状态	封装	引脚	温度范围
5962-8686101XA	量产	3 ld TO-52	3	军用
5962-8686102XA	量产	3 ld TO-52	3	军用
5962-8686103XA	量产	3 ld TO-52	3	军用
AD580JCHIPS	量产	CHIPS OR DIE	3	商业
AD580JH	量产	3 ld TO-52	3	商业
AD580KH	量产	3 ld TO-52	3	商业
AD580LH	量产	3 ld TO-52	3	商业
AD580SH	量产	3 ld TO-52	3	军用
AD580SH/883B	量产	3 ld TO-52	3	军用
AD580TH	量产	3 ld TO-52	3	军用
AD580UH	量产	3 ld TO-52	3	军用
AD580UH/883B	量产	3 ld TO-52	3	军用
