AD574A: Complete 12-Bit A/D Converter
The AD574A is a complete 12-bit successive-approximation analog-to-digital converter with 3-state output buffer circuitry for direct interface to an 8- or 16-bit microprocessor bus. A high precision voltage reference and clock are included on-chip, and the circuit guarantees full-rated performance without external circuitry or clock signals.
The AD574A design is implemented using Analog Devices' Bipolar/I2L process, and integrates all analog and digital functions on one chip. Offset, linearity and scaling errors are minimized by active laser-trimming of thin-film resistors at the wafer stage. The voltage reference uses an implanted buried Zener for low noise and low drift. On the digital side, I2L logic is used for the successive-approximation register, control circuitry and 3-state output buffers.
The AD574A is available in six different grades. The AD574AJ, K, and L grades are specified for operation over the 0°C to +70°C temperature range. The AD574AS, T, and U are specified for the -55°C to +125°C range. All grades are available in a 28-pin hermetically-sealed ceramic DIP. Also, the J, K, and L grades are available in a 28-pin plastic DIP and PLCC, and the J and K grades are available in ceramic LCC.
The S, T, and U grades in ceramic DIP or LCC are available with optional processing to MIL-STD-883C Class B; the T and U grades are available as JAN QPL. The Analog Devices' Military Products Databook should be consulted for details on /883B testing of the AD574A
AD574A 特点
- Complete 12-Bit A/D Converter with Reference and Clock
- 8- and 16-Bit Microprocessor Bus Interface
- Guaranteed Linearity Over Temperature
0°C to +70°C – AD574AJ, K, L
–55°C to +125°C – AD574AS, T, U - No Missing Codes Over Temperature
- 35 us Maximum Conversion Time
- Buried Zener Reference for Long-Term Stability and Low Gain T.C. 10 ppm/°C max AD574AL 12.5 ppm/°C max AD574AU
- Ceramic DIP, Plastic DIP or PLCC Package
- Available in Higher Speed, Pinout-Compatible Versions (15 us AD674B, 80 us AD774B; 10 us (with SHA) AD1674)
- Available in Versions Compliant with MIL-STD-883 and JAN QPL

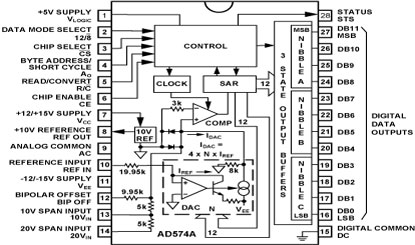

AD574A 功能框图
| 产品型号 | 产品状态 | 封装 | 引脚 | 温度范围 |
|---|---|---|---|---|
| 5962-85127013A | 量产 | LCC:CER LEADLESS CHIP CARR | 28 | 军用 |
| 5962-8512701XA | 量产 | S/B OR B/B CERAMIC DIP | 28 | 军用 |
| 5962-85127023A | 量产 | LCC:CER LEADLESS CHIP CARR | 28 | 军用 |
| 5962-8512702XA | 量产 | S/B OR B/B CERAMIC DIP | 28 | 军用 |
| AD574AJD | 量产 | S/B OR B/B CERAMIC DIP | 28 | 商业 |
| AD574AJDZ | 量产 | S/B OR B/B CERAMIC DIP | 28 | 商业 |
| AD574AJN | 量产 | 28 ld PDIP | 28 | 商业 |
| AD574AJNZ | 量产 | 28 ld PDIP | 28 | 商业 |
| AD574AJP | 量产 | 28 ld PLCC | 28 | 商业 |
| AD574AJP-REEL | 量产 | 28 ld PLCC | 28 | 商业 |
| AD574AJPZ | 量产 | 28 ld PLCC | 28 | 商业 |
| AD574AJPZ-REEL | 量产 | 28 ld PLCC | 28 | 商业 |
| AD574AKD | 量产 | S/B OR B/B CERAMIC DIP | 28 | 商业 |
| AD574AKE | 量产 | LCC:CER LEADLESS CHIP CARR | 28 | 商业 |
| AD574AKN | 量产 | 28 ld PDIP | 28 | 商业 |
| AD574AKNZ | 量产 | 28 ld PDIP | 28 | 商业 |
| AD574AKP | 量产 | 28 ld PLCC | 28 | 商业 |
| AD574AKPZ | 量产 | 28 ld PLCC | 28 | 商业 |
| AD574AKPZ-REEL | 量产 | 28 ld PLCC | 28 | 商业 |
| AD574ALD | 量产 | S/B OR B/B CERAMIC DIP | 28 | 商业 |
| AD574ALN | 量产 | 28 ld PDIP | 28 | 商业 |
| AD574ALNZ | 量产 | 28 ld PDIP | 28 | 商业 |
| AD574ASD | 量产 | S/B OR B/B CERAMIC DIP | 28 | 军用 |
| AD574ASD/883B | 量产 | S/B OR B/B CERAMIC DIP | 28 | 军用 |
| AD574ASE/883B | 量产 | LCC:CER LEADLESS CHIP CARR | 28 | 军用 |
| AD574ATD | 量产 | S/B OR B/B CERAMIC DIP | 28 | 军用 |
| AD574ATD/883B | 量产 | S/B OR B/B CERAMIC DIP | 28 | 军用 |
| AD574ATE/883B | 量产 | LCC:CER LEADLESS CHIP CARR | 28 | 军用 |
| AD574AUD | 量产 | S/B OR B/B CERAMIC DIP | 28 | 军用 |
| AD574AUD/883B | 量产 | S/B OR B/B CERAMIC DIP | 28 | 军用 |
| AD574AUE/883B | 量产 | LCC:CER LEADLESS CHIP CARR | 28 | 军用 |
| JM38510/14001BXA | 量产 | S/B OR B/B CERAMIC DIP | 28 | 军用 |
| JM38510/14002BXA | 量产 | S/B OR B/B CERAMIC DIP | 28 | 军用 |
