AD569: 16-Bit Monotonic Voltage Output D/A Converter

The AD569 is a monolithic 16-bit digital-to-analog converter (DAC) manufactured in Analog Devices' BiMOS II process. BiMOS II allows the fabrication of low power CMOS logic functions on the same chip as high precision bipolar linear circuitry. The AD569 chip includes two resistor strings, selector switches decoding logic, buffer amplifiers, and double-buffered input latches.

The AD569's voltage-segmented architecture insures 16-bit monotonicity over time and temperature. Integral nonlinearity is maintained at ±0.01%, while differential nonlinearity is ±0.0004%. The on-chip, high-speed buffer amplifiers provide a voltage output settling time of 3 us to within ±0.001% for a full-scale step.

The reference input voltage which determines the output range can be either unipolar or bipolar. Nominal reference range is ±5 V and separate reference force and sense connections are provided for high accuracy applications. The AD569 can operate with an ac reference in multiplying applications.

Data may be loaded into the AD569's input latches from 8- and 16-bit buses. The double-buffered structure simplifies 8-bit bus interfacing and allows multiple DACs to be loaded asynchronously and updated simultaneously. Four TTL/LSTTL/5 V CMOS-compatible signals control the latches: CS, LBE, HBE, and LDAC.

The AD569 is available in five grades: J and K versions are specified from 0°C to +70°C and are packaged in a 28-pin plastic DIP and 28-pin PLCC package; AD and BD versions are specified from -25°C to +85°C and are packaged in a 28-pin ceramic DIP. The SD version, also in a 28-pin ceramic DIP, is specified from -55°C to +125°C.

AD569 特点

Guaranteed 16-Bit Monotonicity
Monolithic BiMOS II Construction
±0.01% Typical Nonlinearity
8- and 16-Bit Bus Compability
3 us Settling to 16 Bits
Low Drift
Low Power
Low Noise

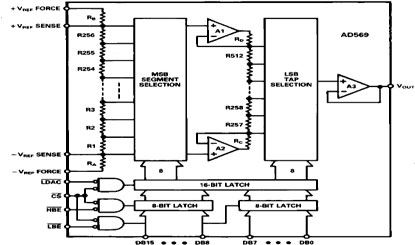

AD569 功能框图

AD569 芯片订购指南

产品型号	产品状态	封装	引脚	温度范围
AD569AD	量产	S/B OR B/B CERAMIC DIP	28	工业
AD569BD	量产	S/B OR B/B CERAMIC DIP	28	工业
AD569JN	量产	28 ld PDIP	28	商业
AD569JNZ	量产	28 ld PDIP	28	商业
AD569JP	量产	28 ld PLCC	28	商业
AD569JP-REEL	量产	28 ld PLCC	28	商业
AD569JPZ	量产	28 ld PLCC	28	商业
AD569JPZ-REEL	量产	28 ld PLCC	28	商业
AD569KN	量产	28 ld PDIP	28	商业
AD569KNZ	量产	28 ld PDIP	28	商业
AD569KP	量产	28 ld PLCC	28	商业
AD569KPZ	量产	28 ld PLCC	28	商业
AD569SD	量产	S/B OR B/B CERAMIC DIP	28	军用
AD569SD/883B	量产	S/B OR B/B CERAMIC DIP	28	军用
AD569SE/883B	量产	LCC:CER LEADLESS CHIP CARR	28	军用
