AD538: Real-Time Analog Computational Unit (ACU)

The AD538 is a monolithic real-time computational circuit which provides precision analog multiplication, division, and exponentiation. The combination of low input and output offset voltages and excellent linearity results in accurate computation over an unusually wide input dynamic range. Laser wafer trimming makes multiplication and division with errors as low as 0.25% of reading possible, while typical output offsets of 100 microV or less add to the overall off-the-shelf performance level. Real-time analog signal processing is further enhanced by the device's 400 kHz bandwidth.

The AD538's overall transfer function is Vo=Vy(Vz/Vx)m. Programming a particular function is via pin strapping. No external components are required for one-quadrant (positive input) multiplication and division. Two-quadrant (bipolar numerator) division is possible with the use of external level shifting and scaling resistors. The desired scale factor for both multiplication and division can be set using the on-chip +2 V or +10 V references, or controlled externally to provide simultaneous multiplication and division. Exponentiation with an M value from 0.2 to 5 can be implemented with the addition of one or two external resistors.

Direct log ratio computation is possible by utilizing only the log ratio and output sections of the chip. Access to the multiple summing junctions adds further to the AD538's flexibility. Finally, a wide power-supply range of ±4.5 V to ±18 V allows operation from standard ±5 V, ± 12 V and ± 15 V supplies.

The AD538 is available in two accuracy grades (A and B) over the industrial (-25°C to +85°C) temperature range and one grade (S) over the military (-55°C to +125°C) temperature range. The device is packaged in an 18-pin TO-118 hermetic size-brazed ceramic DIP. A-grade chips are also available.

AD538 特点

VOUT = VY (VZ divided by VX)m Transfer Function
Wide Dynamic Range (Denominator) -1000:1
Simultaneous Multiplication and Division
Resistor-Programmable Powers and Roots
No External Trims Required
Low Input Offsets <100 uV
Low Error ±0.25% of Reading (100:1 Range)
+2 V and +10 V On-Chip References
Monolithic Construction

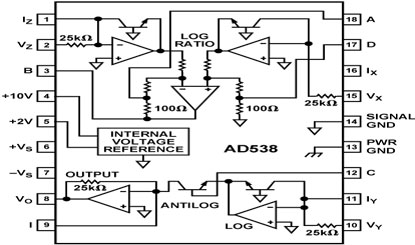

AD538 功能框图

AD538 芯片订购指南

产品型号	产品状态	封装	引脚	温度范围	报价* (100-499)	报价* (1000 pcs.)
AD538AD	量产	18 ld CerDip	18	工业	$ 35.83	$ 32.39
AD538ADZ	量产	18 ld CerDip	18	工业	$ 32.41	$ 29.30
AD538BD	量产	18 ld CerDip	18	工业	$ 45.48	$ 41.12
AD538BDZ	量产	18 ld CerDip	18	工业	$ 41.14	$ 37.20
AD538SD	量产	18 ld Side-Brazed CerDIP	18	军用	$ 77.79	$ 77.79
AD538SD/883B	量产	18 ld Side-Brazed CerDIP	18	军用	$ 82.33	$ 74.42
