AD532: Internally Trimmed Integrated Circuit Multiplier

The AD532 is the first pretrimmed single chip monolithic multiplier/divider. It guarantees a maximum multiplying error of ±1.0% and a ±10 V output voltage without the need for any external trimming resistors or output op amp. Because the AD532 is internally trimmed, its simplicity of use provides design engineers with an attractive alternative to modular multipliers, and its monolithic construction provides significant advantages in size, reliability and economy. Further, the AD532 can be used as a direct replacement for other IC multipliers that require external trim networks (such as the AD530).

AD532 特点

Pretrimmed to ±1.0% (AD532K)
No External Components Required
Guaranteed ±1.0% max 4-Quadrant Error (AD532K)
Diff Inputs for (X1 - X2) (Y1 - Y2)/10 V Transfer Function
Monolithic Construction, Low Cost

AD532 功能框图

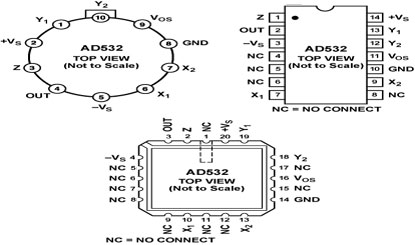

AD532 芯片订购指南

产品型号	产品状态	封装	引脚	温度范围
AD532JD	量产	14 ld Bottom-Brazed CerDIP	14	商业
AD532JDZ	量产	14 ld Bottom-Brazed CerDIP	14	商业
AD532JH	量产	10 ld TO_100	10	商业
AD532JHZ	量产	10 ld TO_100	10	商业
AD532KD	量产	14 ld Bottom-Brazed CerDIP	14	商业
AD532KDZ	量产	14 ld Bottom-Brazed CerDIP	14	商业
AD532KH	量产	10 ld TO_100	10	商业
AD532KHZ	量产	10 ld TO_100	10	商业
AD532SD	量产	14 ld Bottom-Brazed CerDIP	14	军用
AD532SD/883B	量产	14 ld Bottom-Brazed CerDIP	14	军用
AD532SE/883B	量产	20 ld LCC	20	军用
AD532SH	量产	10 ld TO_100	10	军用
AD532SH/883B	量产	10 ld TO_100	10	军用
