AD53040G: HIGH SPEED DRIVERS: Complete high speed pin driver

The AD53040 is a complete high speed pin driver designed for use in digital or mixed signal test systems. Combining a high speed monolithic process with a unique surface mount package, this product attains superb electrical performance while preserving optimum packaging densities and long-term reliability in an ultrasmall 20-lead, SOP package with built-in heatsink.

AD53040G 特点

• 500 MHz Driver Operation
• Driver Inhibit Function
• 100 ps Edge Matching
• Guaranteed Industry Specifications


  50 Ω Output Impedance

  1.5 V/ns Slew Rate

  Variable Output Voltages for ECL, TTL and CMOS

• High Speed Differential Inputs for Maximum Flexibility
• Ultrasmall 20-Lead SOP Package with Built-In Heat Sink

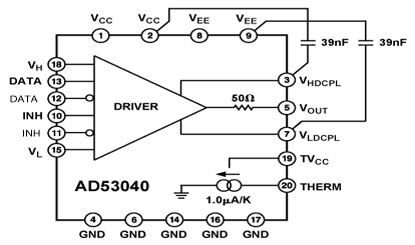

AD53040G 功能框图

AD53040G 芯片订购指南

产品型号	产品状态	封装	引脚	温度范围
AD53040KRP	量产	20 ld PSOP	20	商业
AD53040KRPZ	量产	20 ld PSOP	20	商业

AD53040G 应用技术支持与电子电路设计开发资源下载

1. AD53040G 数据手册DataSheet 下载 . PDF
2. ADI 模拟器件公司比较器产品选型指南 . PDF
3. Analog Devices, Inc. 美国模拟器件公司产品订购手册 .PDF
