AD5258EVAL: Nonvolatile, I^2C(R)-Compatible 64-Position, Digital Potentiometer
The AD5258 provides a compact, nonvolatile 3 mm × 4.9 mm packaged solution for 64-position adjustment applications. These devices perform the same electronic adjustment function as mechanical potentiometers* or variable resistors, but with enhanced resolution and solid-state reliability.
The wiper settings are controllable through an I^2C-compatible digital interface that is also used to read back the wiper register and EEPROM content in addition, resistor tolerance is stored within EEPROM, providing an end-to-end tolerance accuracy of 0.1%. There is also a software write protection function that ensures data cannot be written to the EEPROM register.
A separate VLOGIC pin delivers increased interface flexibility. For users who need multiple parts on one bus, Address Bit AD0 and Address Bit AD1 allow up to four devices on the same bus.
产品应用领域 Applications
- LCD panel VCOM adjustment
- LCD panel brightness and contrast control
- Mechanical potentiometer replacement in new designs
- Programmable power supplies
- RF amplifier biasing
- Automotive electronics adjustment
- Gain control and offset adjustment
- Fiber to the home systems
- Electronics level settings
AD5258EVAL 特点
- Nonvolatile memory maintains wiper settings
- 64-position digital potentiometer
- Compact MSOP-10 (3 mm × 4.9 mm)
- I^2C-compatible interface
- VLOGIC pin provides increased interface flexibility
- End-to-end resistance 1 kΩ, 10 kΩ, 50 kΩ, 100 kΩ
- Resistance tolerance stored in EEPROM (0.1% accuracy)
- Power-on EEPROM refresh time <1 ms
- Software write protect command
- Address Decode Pin AD0 and Address Decode Pin AD1 allow four packages per bus
- 100-year typical data retention at 55°C
- Wide operating temperature -40°C to +85°C

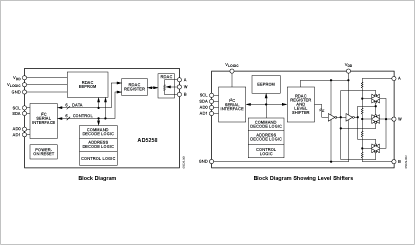

AD5258EVAL 功能框图
| 产品型号 | 产品状态 | 封装 | 引脚 | 温度范围 |
|---|---|---|---|---|
| AD5258BRMZ1 | 量产 | 10 ld MSOP | 10 | 汽车级 |
| AD5258BRMZ1-R7 | 量产 | 10 ld MSOP | 10 | 汽车级 |
| AD5258BRMZ10 | 量产 | 10 ld MSOP | 10 | 汽车级 |
| AD5258BRMZ10-R7 | 量产 | 10 ld MSOP | 10 | 汽车级 |
| AD5258BRMZ100 | 量产 | 10 ld MSOP | 10 | 汽车级 |
| AD5258BRMZ100-R7 | 量产 | 10 ld MSOP | 10 | 汽车级 |
| AD5258BRMZ50 | 量产 | 10 ld MSOP | 10 | 汽车级 |
| AD5258BRMZ50-R7 | 量产 | 10 ld MSOP | 10 | 汽车级 |
| AD5258EVAL | 量产 | 评估板 | 16 | 待定 |
