AD22151G: Linear Output Magnetic Field Transducer
The AD22151G is a linear magnetic field transducer. The sensor output is a voltage proportional to a magnetic field applied perpendicularly to the package top surface.
AD22151G 特点
- Adjustable Offset to Unipolar or Bipolar Operation
- Low Offset Drift over Temperature Range
- Gain Adjustable over Wide Range
- Low Gain Drift over Temperature Range
- Adjustable First Order Temperature Compensation
- Ratiometric to Vcc

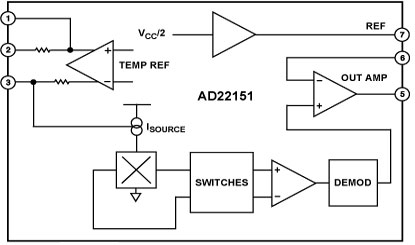

AD22151G 功能框图
| 产品型号 | 产品状态 | 封装 | 引脚 | 温度范围 |
|---|---|---|---|---|
| AD22151YR | 量产 | 8 ld SOIC | 8 | 商业 |
| AD22151YR-REEL | 量产 | 8 ld SOIC | 8 | 汽车级 |
| AD22151YRZ | 量产 | 8 ld SOIC | 8 | 商业 |
| AD22151YRZ-RL | 量产 | 8 ld SOIC | 8 | 汽车级 |
