AD1837A: 2 ADC, 8 DAC, 96 kHz, 24-Bit Sigma Delta CODEC
The AD1837A is a high-performance single-chip CODEC featuring four stereo DACs and one stereo ADC.
Each DAC comprises a high-performance digital interpolation filter, a multi-bit sigma-delta modulator featuring Analog Devices patented technology and a continuous-time voltage out analog section with single-ended outputs. Each DAC has independent volume control and clickless mute functions. The ADC comprises two 24-bit conversion channels with multi-bit sigma-delta modulators and decimation filters.
The AD1837A also contains an on-chip reference with a nominal value of 2.25 V.
The AD1837A contains a flexible serial interface that allows for glueless connection to a variety of DSP chips, AES/EBU receivers and sample rate converters. The AD1837A can be configured in Left-Justified, Right-Justified, I2S or DSP compatible serial modes. Control of the AD1837A is achieved by means of an SPI compatible serial port. While the AD1837A can be operated from a single 5 V supply, it also features a separate supply pin for its digital interface, which allows the device to be interfaced to other devices using 3.3 V power supplies.
The AD1837A is available in a 52 Lead MQFP package and is specified for the industrial temperature range of -40ºC to +85ºC.
AD1837A 特点
- 5 V Stereo Audio System with 3.3 V Tolerant Digital Interface
- Supports up to 96 kHz Sample Rates, 192 kHz Sample Rate available on one DAC
- Supports 16-/20-/24-Bit Word Lengths
- Multibit Sigma-Delta Modulators with "Perfect Differential Linearity Restoration" for Reduced Idle Tones and Noise Floor
- Data Directed Scrambling DACs -Least Sensitive to Jitter
- Single-Ended Outputs
- ADCs:-95 dB THD +N, 105 dB SNR and Dynamic Range
- DACs:-92 dB THD +N, 108 dB SNR and Dynamic Range
- On-Chip Volume Controls Per Channel with 1024 Step Linear Scale
- Flexible Serial Data Port with Right-Justified, Left-Justified, I2S-Compatible and DSP Serial Port Modes
- TDM Interface Mode Supports 8 In/8 Out Using Single SHARC® SPORT
- 52-Lead MQFP Plastic Package

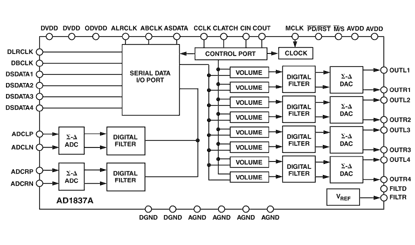

AD1837A 功能框图
