5B37: Isolated Thermocouple Input Signal Conditioning Module

The 5B Series represents an innovative generation of low cost, high performance plug-in signal conditioners. Designed for industrial applications, these modules incorporate a new circuit design utilizing transformer-based isolation and automated surface mount manufacturing technology. They are compact, economical components whose performance exceeds that available from more expensive devices. Combining 1500 V rms continuous CMV isolation, ±0.05% calibrated accuracy, small size and low cost, the 5B Series is an attractive alternative to expensive signal conditioners and in-house designs.

All modules are hard potted and identical in pinout and size (2.25" x 2.25" x 0.60"). They can be mixed and matched, permitting users to address their exact needs, and may be changed without disturbing field wiring. The isolated input modules provide 0 V to +5 V or 65 V outputs and accept J, K,T, E, R, S and B thermocouples; 100 Ohms platinum, 10 Ohms copper and 120 Ohms nickel RTDs, full or half bridge strain gages; mV, V, 4-20 mA or 0-20 mA, and wide bandwidth (10 kHz) mV and V signals. These modules feature complete signal conditioning functions including 240 V rms input protection, filtering, chopper stabilized low drift (±1 uV/°C), amplification, 1500 V rms isolation, linearization for RTD and thermocouple (with 5B47) inputs and sensor excitation when required. The output module converts a 0 V to +5 V input to an isolated 4-20 mA or 0-20 mA process current signal. All modules feature excellent common mode rejection and meet ANSI/IEEE-C37.90.1-1989 surge withstand specs.

The 5B Series provides system designers with an easy to use solution for analog I/O in a minimum of board space. The modules' simple pinout and easy mechanical application simplify design.

There are also a number of backplanes which provide a complete signal conditioning solution for end users. Each backplane incorporates screw terminals for field wiring inputs and outputs and cold junction compensation sensors for thermocouple applications. Nineteen-inch relay rack compatible units that can hold up to sixteen modules are available.

5B37 特点

Accepts All Common TC Input (J, K, T, E, R, S, B)
Internal CJC and Open TC Detection
4 Hz BW

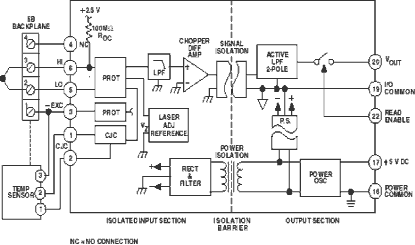

5B37 功能框图

5B37 芯片订购指南

产品型号	产品状态	封装	引脚	温度范围
5B37-B-06	量产	IOS MODULE	14	商业
5B37-CUSTOM	量产	IOS MODULE	14	商业
5B37-E-04	量产	IOS MODULE	14	商业
5B37-J-01	量产	IOS MODULE	14	商业
5B37-K-02	量产	IOS MODULE	14	商业
5B37-N-08	量产	IOS MODULE	14	商业
5B37-R-05	量产	IOS MODULE	14	商业
5B37-S-05	量产	IOS MODULE	14	商业
5B37-T-03	量产	IOS MODULE	14	商业
