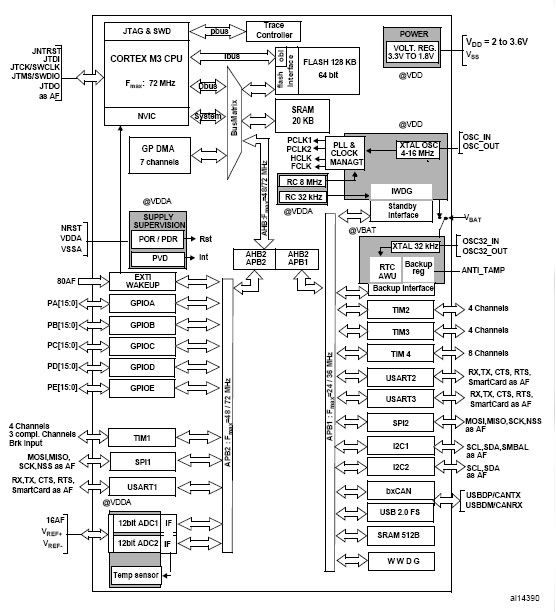

Figure 1. STM32F103xx performance line block diagram

1. TA = –40 °C to +105 °C (junction temperature up to 125 °C).
2. AF = alternate function on I/O port pin.

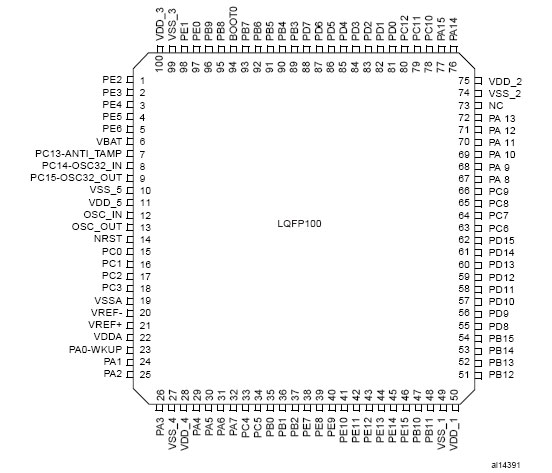

Figure 2. STM32F103xx performance line LQFP100 pinout

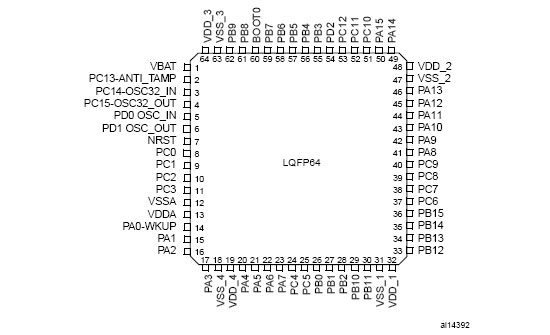

Figure 3. STM32F103xx performance line LQFP64 pinout

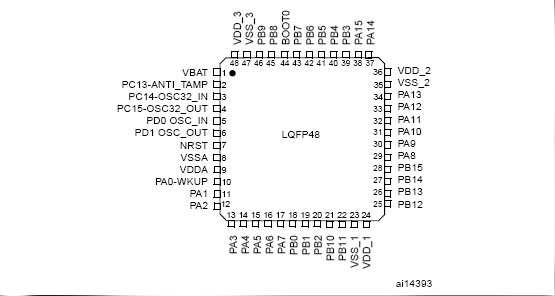

Figure 4. STM32F103xx performance line LQFP48 pinout

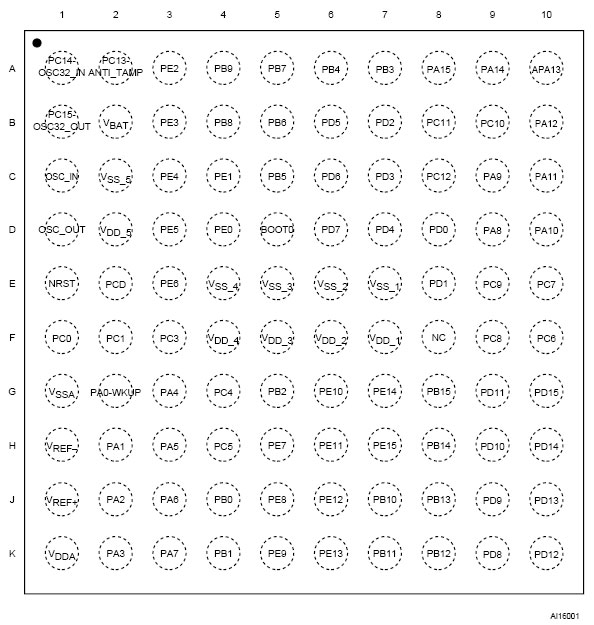

Figure 5. STM32F103xx performance line BGA100 ballout
