EZ-KIT Lite® for the ADSP-BF533, ADSP-BF532, and ADSP-BF531 Blackfin® Processors

ADZS-BF533-EZLITE 说明

The ADSP-BF533 EZ-KIT Lite provides developers with a cost-effective method for initial evaluation of the ADSP-BF533 Blackfin Processor for a wide range of applications including audio and video processing. The EZ-KIT Lite includes an ADSP-BF533 desktop evaluation board and fundamental debugging software to facilitate architecture evaluations via a USB-based PC-hosted tool set. With this EZ-KIT Lite, users can learn more about ADI's ADSP-BF533 hardware and software development and prototype applications. The ADSP-BF533 EZ-KIT Lite provides an evaluation suite of the VisualDSP++ integrated development and debug environment. The VisualDSP++ software included with the EZ-KIT Lite is limited in program memory size for use solely with the EZ-KIT Lite product.

ADZS-BF533-EZLITE 特点

• ADSP-BF533 Blackfin® Processor
• 64 MB (32M x 16-bit) SDRAM
• 2 MB (512K x 16-bit x 2) FLASH memory
• ADV7183 video decoder w/ 3 input RCA jacks
• AD1836 96 kHz audio codec w/ 4 input and 6 output RCA jacks
• ADV7171 video encoder w/ 3 output RCA jacks
• ADM3202 RS-232 line driver/receiver

ADZS-BF533-EZLITE 最低配置要求

• Pentium® 166 MHz or higher
• Minimum of 32 MB of RAM
• Windows® 98 , Windows 2000, or Windows XP
• One USB port

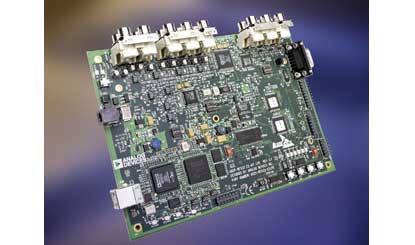

ADZS-BF533-EZLITE 实物图

ADZS-BF533-EZLITE 应用技术支持与电子电路设计开发资源下载

1. ADZS-BF533-EZLITE 数据手册DataSheet 下载 .PDF（开发工具使用说明书）

2. ADI 模拟器件公司比较器产品选型指南 .PDF
3. Analog Devices, Inc. 美国模拟器件公司产品订购手册 .PDF
4. Blackfin 处理器编程手册 .PDF（Rev 1.3）
